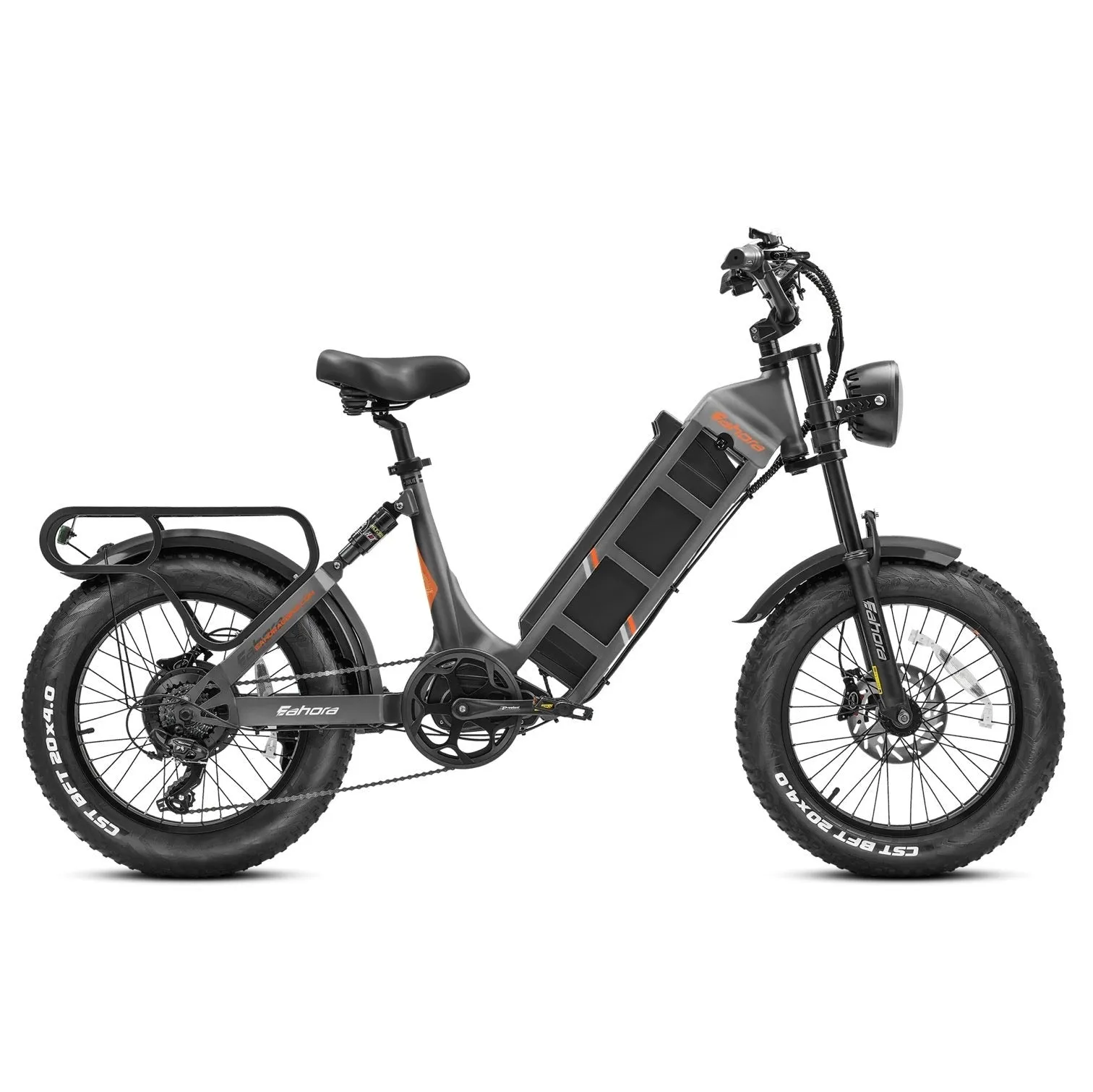

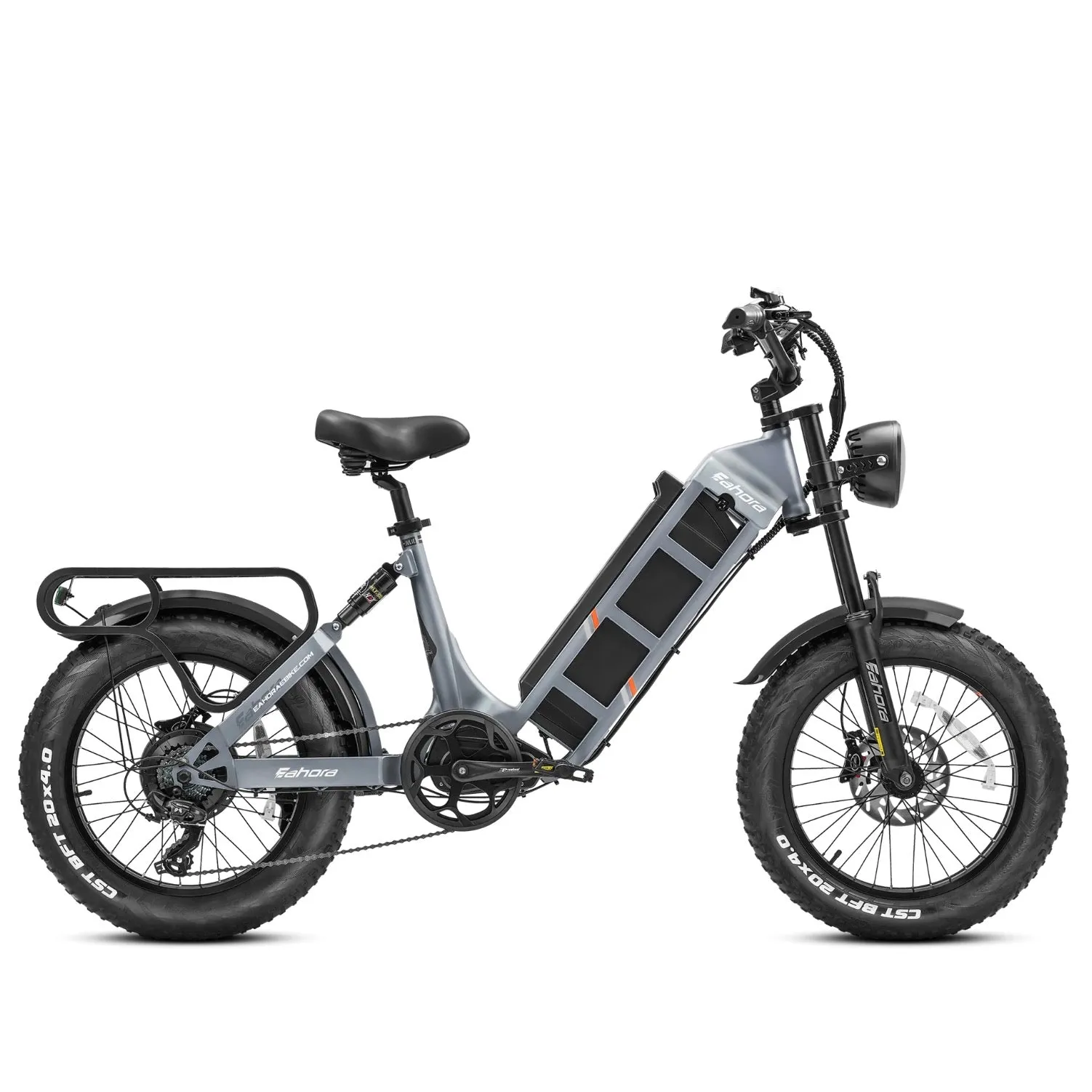

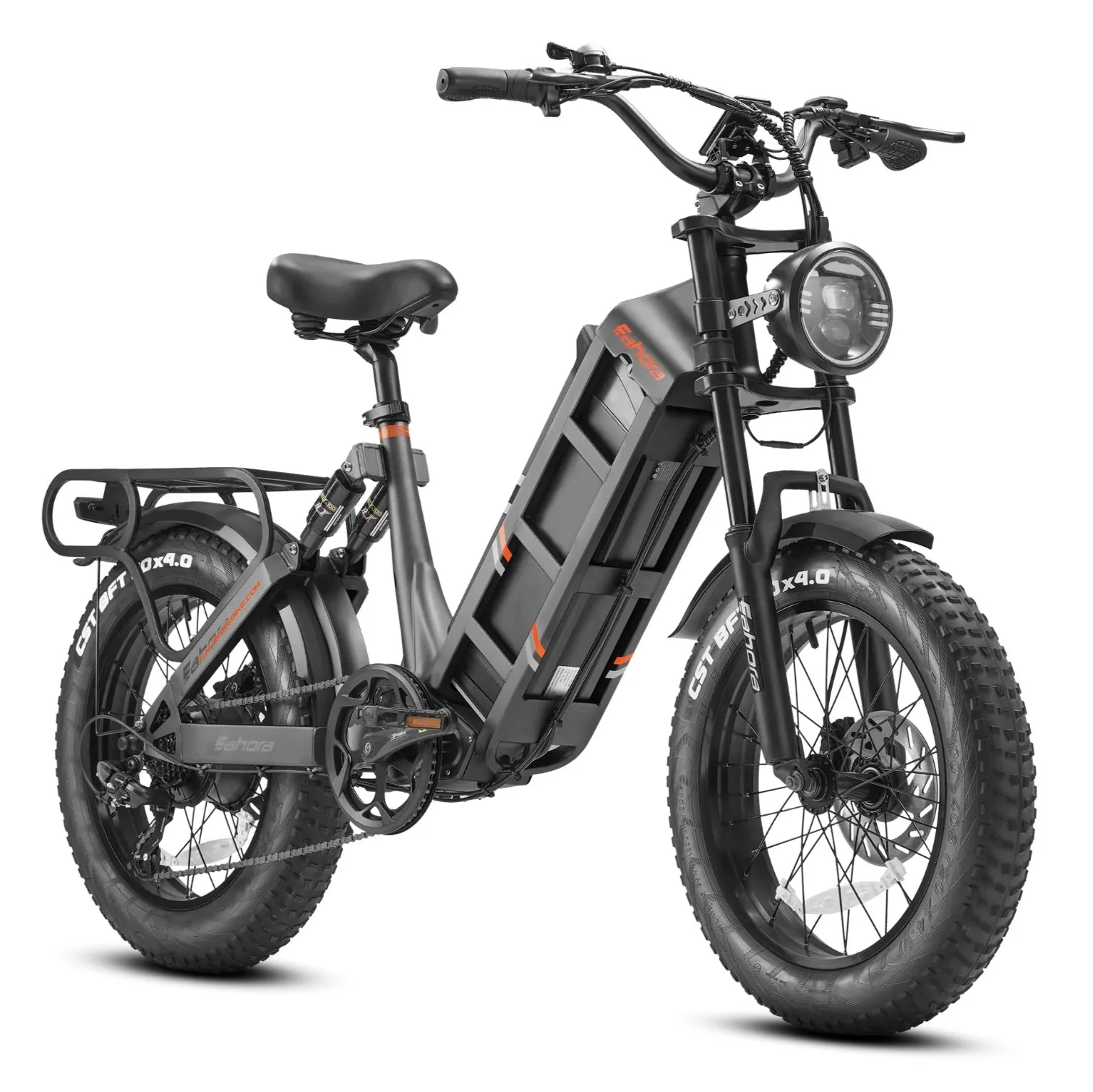

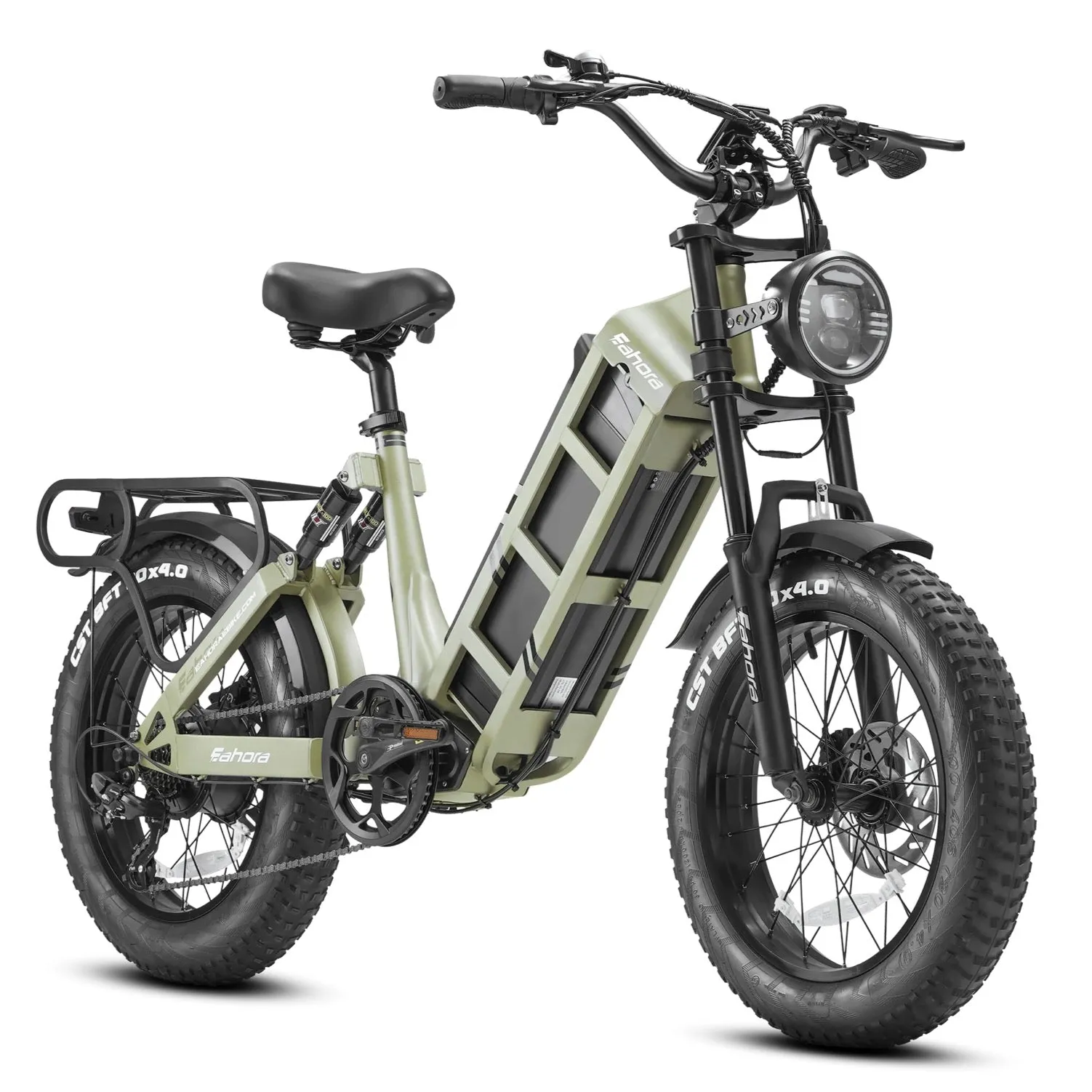

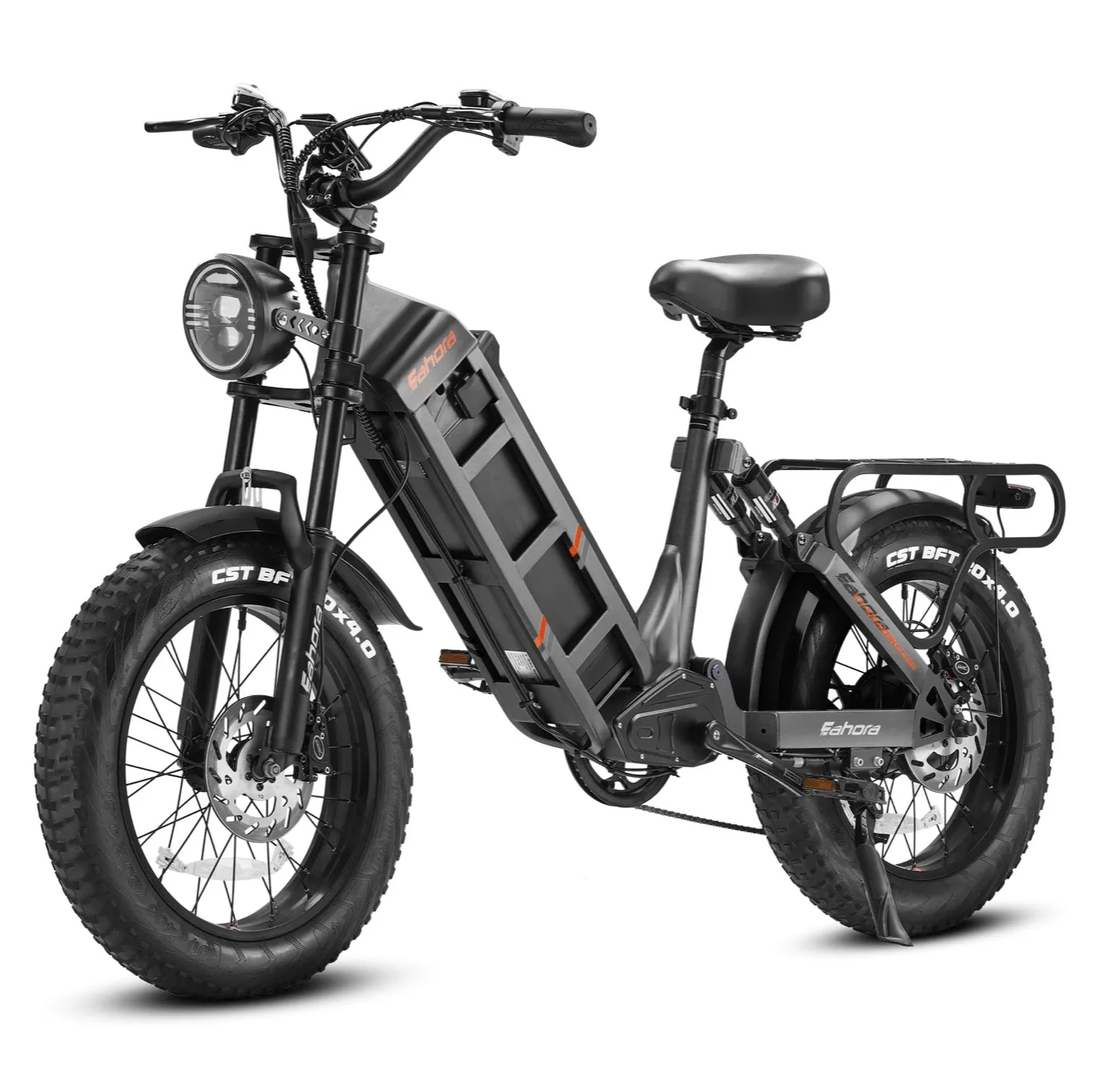

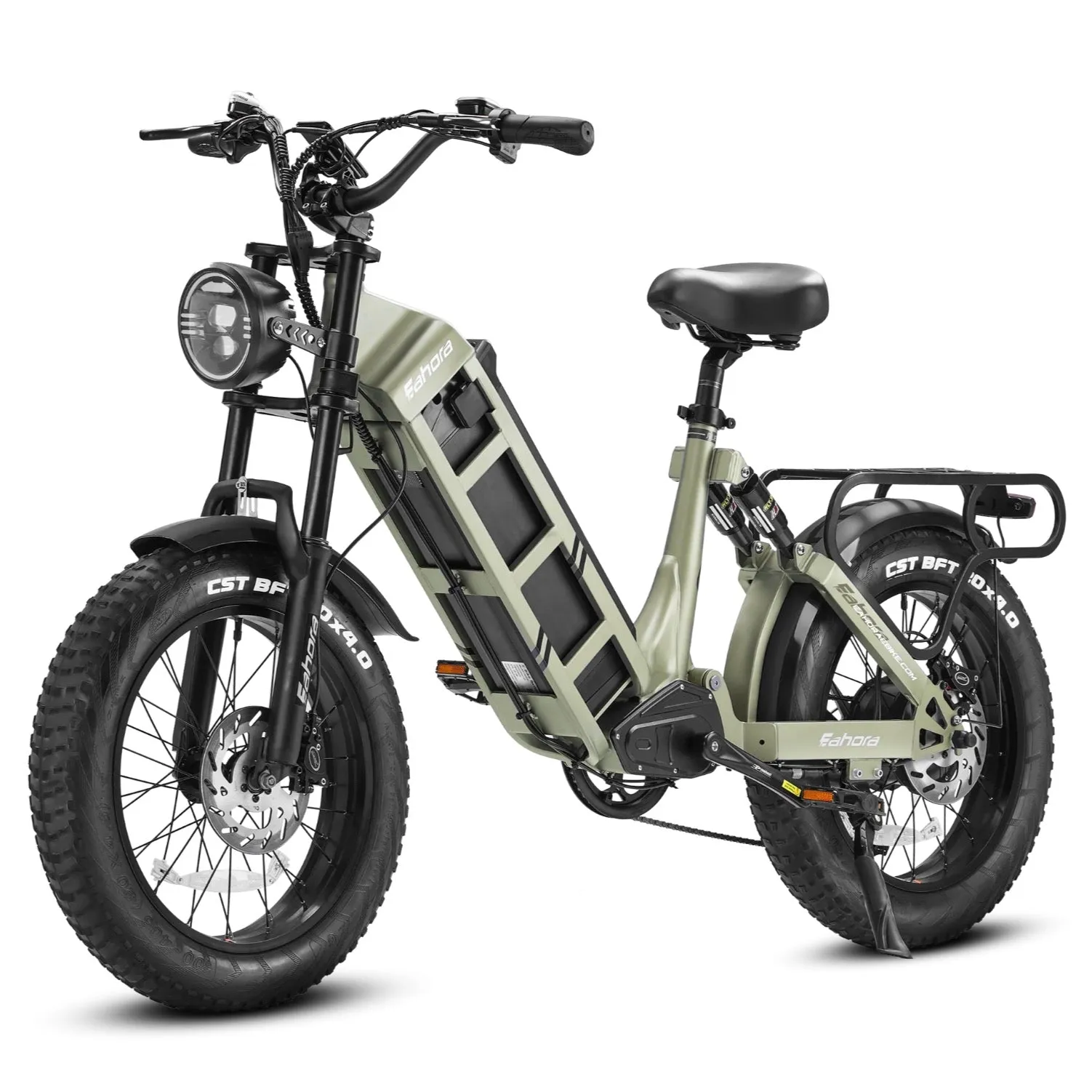

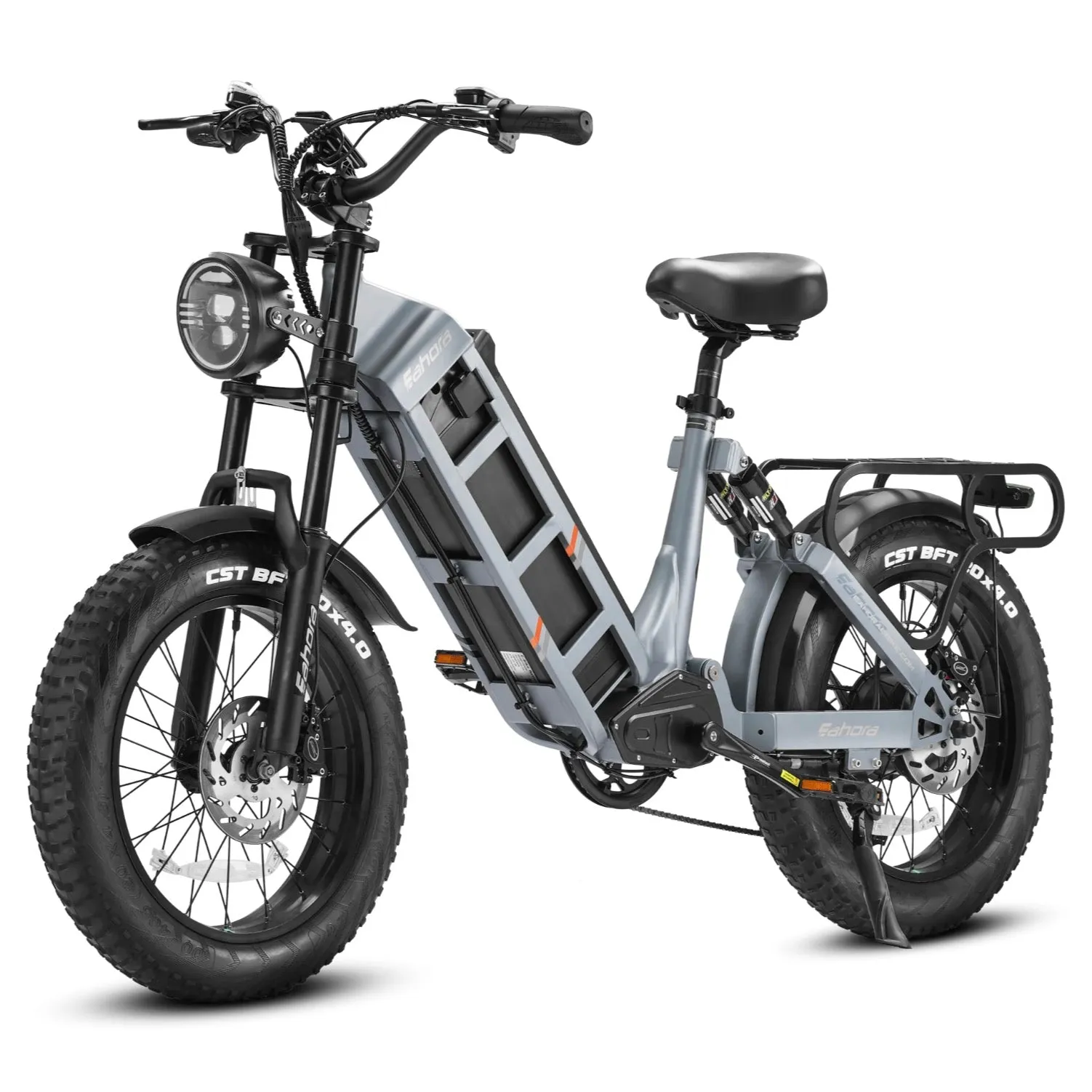

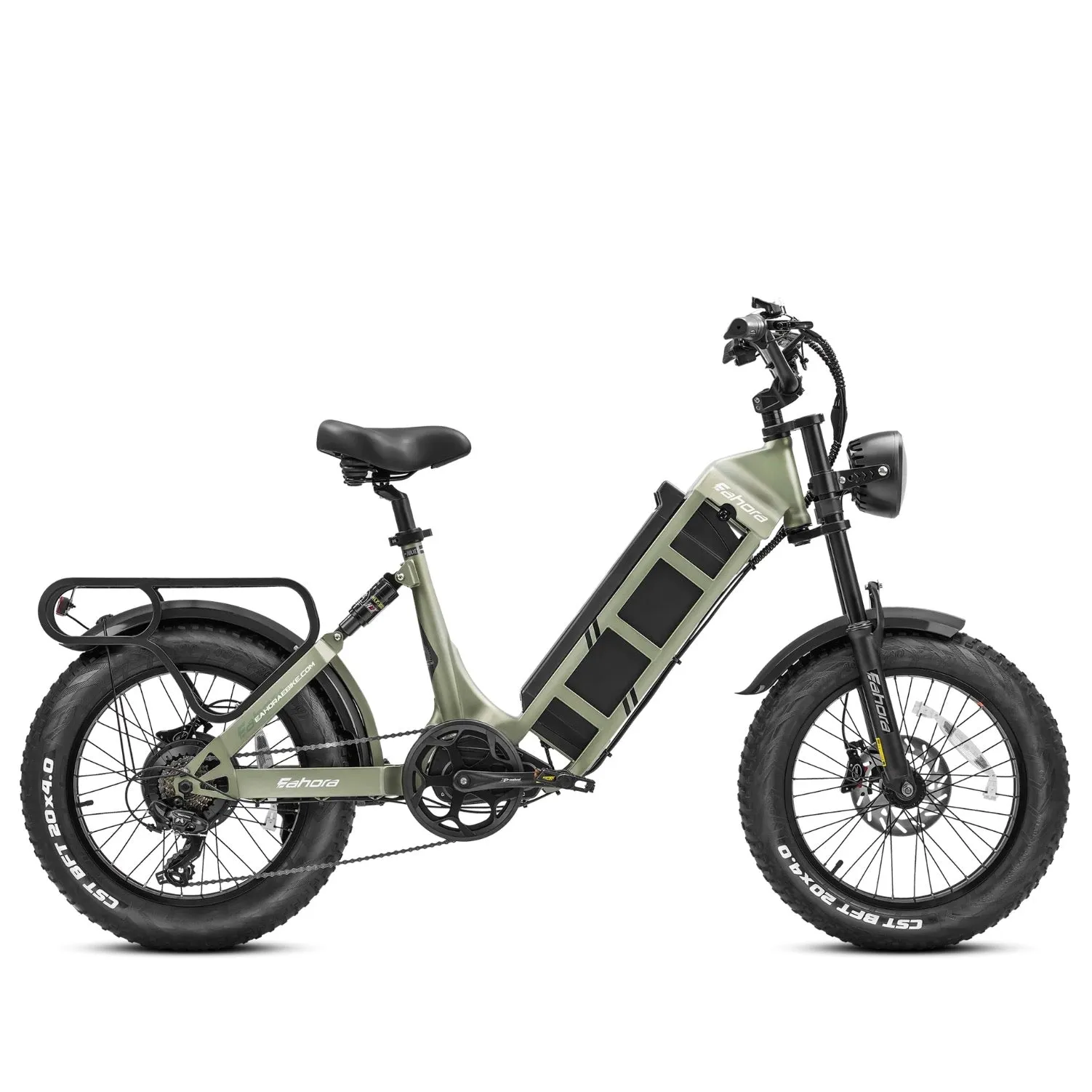

Eahora Juliet | 1000W 48V 60Ah Moped Style Electric Bike
Meet Juliet, designed for riders who want reliable and long last cycling. The best 48v ebike battery made by EV-class safety standards with 60Ah capacity. Ride for longer distances now, no more worrying about running out of power. Featuring a step-thru design frame crafted from high-quality steel, providing exceptional strength and durability.
Electronic System
Motor
1000W Brushless Motor
Enjoy the thrills of new generation motor with 1000W rated, 1200W peak output, and 110 max torque. The new upgraded controller with 25A max output makes it easier than ever to ride up hills and tackle challenging terrain.
Torque: 90N.m
Gradeability: 30° -40°
Battery
48V 60Ah Battery
Throttle Mode Range: 78 - 84 Miles
PAS Mode Range: 110-120 Miles
Display
Color LCD Display
Five-level pedal assist and equip twist throttle can achieve the same speed in electric mode. Featuring pushing mode and cruising mode make more functionality and usability during cycling.
Tech Specs
To ensure uninterrupted supplying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Electronic
Motor
1000W DC hub motor, cassette; rated torque: 90N.M.
Battery
48V 60AH (2.88KWH) lithium battery.
Controller
48V, 25 ± 0.5A; 12MOS.
Charger
54.6V ~ 8A smart charger; input 100-240V 50/60HZ. Charging hour: 6-8 Hours.
Display
4" portrait color display(YL-81F), IP65 Waterproof; brightness: 100CD/M2
Lights
Front light 48V 8W LED light; rear intergrated brake lights, turn-signal lights.
Wiring
Water resistant connectors and wiring harness.
Waterproof Rates
IP65 Waterproof, including motor battery, display and wiring.
Components
Frame
Carbon Steel; frame size: 20" * 18".
Brakes
180MM front and rear hydraulic disc brakes.
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch.
Tires
20" * 4" CST tires; tire pressure marked on sidewall.
Fork
80MM travel mechanic suspension alloy fork, adjustable.
Rear Suspension
35MM Travel Spring suspension(HLT-100) * 2.
Chain
DG50 chain.
Crank Set
48T * 165MM, dual-sided chainring guard.
Shifters
Shimano 7-speed.
Derailleur
Shimano 7-speed.
Freewheel
Shimano 7-speed, 14-28T.
Grip
Comfort rubber ergo grips.
Handlebar
BMX handlebar.
Pedals
9/16, polymer bearing.
Headset
Intergrated threadless headset.
Rack
Customized steel rear rack.
Kickstand
Aluminum alloy kickstand with plastic foot.
Fenders
Custom fat tire fenders, no bracket arm.
Saddle
Comfort leather saddle.
Rims
Aluminum 36H spoke wheel.
Seatpost
Aluminum seapost with clamp.
Bell
Electric horn integrated into the headlight.
Assembly Video
To ensure uninterrupted supplying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Geometry
Size and Geometry
Recommended Rider Height: 5'4" - 6'4" or 165CM - 195CM
Ⓐ - Total Length: 72.05" or 183CM
Ⓑ - Wheel Base: 48.8" or 124CM
Ⓒ - Seat Height: 32.3" - 40.2" or 82CM - 102CM
Ⓓ - Handlebar Height: 42.5" or 108CM
Ⓔ - Rim Diameter: 16.4" or 42CM
Ⓕ - Standover: 24.2" or 61.5CM
Ⓖ - Reach Distance: 22.8" or 58CM
Ⓗ - Chain Stay Length: 18.9" or 48CM
Ⓘ - Seat Angle: 74.7°
Ⓙ - Seat Tube Length: 10.6" or 27CM
Ⓚ - Bike Width: 28" or 71CM
Ⓛ - Top Tube Length: 23.6" or 60CM
